Description
Achieve Maximum Yields with the Full-Spectrum LED Grow Light
Seamless Control and Optimized Performance
This full-spectrum LED grow light connects effortlessly with the Controller 69 (sold separately), giving you complete control over your grow setup via the controller or your phone. Designed with precision and functionality in mind, it delivers exceptional lighting for all stages of plant growth.
Key Features:
- Optimized Spectrum with Samsung LM301H LEDs: Full-spectrum lighting tailored for germination, vegetative, and flowering stages.

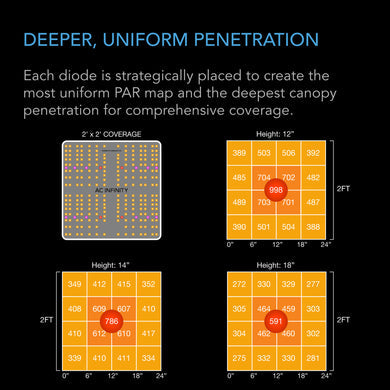

- Algorithmically Positioned Diodes: Uniform PAR map coverage and deep canopy penetration for enhanced growth.

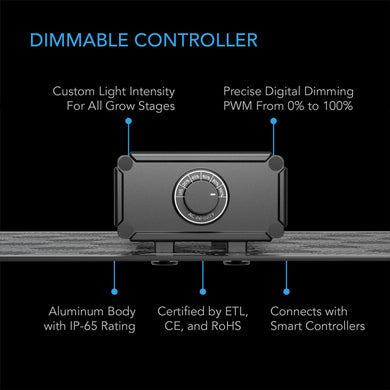

- Dimmable Driver: Adjust brightness from 0 to 100% using a convenient control knob or integrate with smart controllers for advanced scheduling.
- Durable and Grow-Ready Design: Built on a fanless unibody aluminium board, IP-65 rated for high humidity and heat environments.
- Expandable System: Daisy chain additional lights using expansion dongles (sold separately) and pair with the UIS™ platform for a fully automated grow environment.
Robust Build for Grow Tents and Beyond
Crafted for durability, this grow light is designed for use in grow tents with reflective Mylar linings. Its unibody aluminium board effectively dissipates heat, extending the lifetime of its diodes. All components are sealed to IP-65 standards, ensuring reliable performance in challenging grow environments.
Optimized Spectrum for Maximum Growth
Harness the power of Horticulture Series Samsung LM301H diodes, featuring 3000K and 5000K white LEDs. The algorithmic positioning of diodes ensures the most uniform PAR map and the deepest light penetration, helping your plants thrive in every growth stage.
Future-Ready Smart Controls
The proprietary LED driver offers dimming in 20% increments and is equipped for daisy chaining. Connect with our smart controllers to unlock advanced features like grow cycle programming, scheduling, and app control. This grow light integrates seamlessly with the UIS™ platform, uniting fans, lights, and controllers for a fully optimized grow environment.
Note for Australian Customers
This unit is equipped with a USA plug but operates on 240V without issues when using an AU travel adapter or replacing the plug with an Australian-compatible one.
Why Choose This Grow Light?
- Unmatched spectrum optimization for all plant stages
- Durable, IP-65-rated design for humid and high-heat environments
- Smart control compatibility for advanced grow management
- Expandable and future-proof system for large-scale setups
Upgrade your grow space with this cutting-edge LED grow light and enjoy higher yields, smarter controls, and superior performance.
IONBOARD S22 Product Specifications
Product Identification
| Feature | Details |
|---|---|
| Product Name | IONBOARD S22 |
| Manufacturer | AC Infinity Inc. |
| Model | AC-IBS22 |
| UPC Code | 819137022515 |

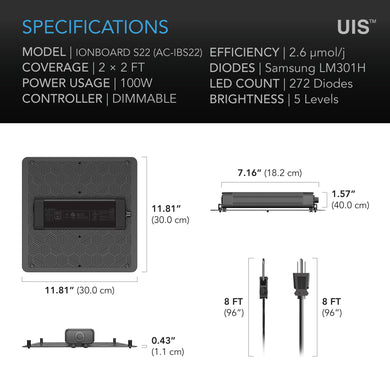

Product and Mounting Dimensions
| Feature | Metric Dimensions |
|---|---|
| Light Dimensions | 30.0 x 30.0 cm |
| LED Board Thickness | 1.1 cm |
| Driver Dimensions | 18.2 x 4.0 cm |
Product Performance and Technical Specs
| Feature | Metric Details |
|---|---|
| Coverage | 60 x 60 cm |
| Diodes | Samsung LM301H |
| LED Chip Count | 272 |
| LED Driver | AC Infinity Proprietary Driver, Model GTS-100 |
| Efficiency | 2.7 µmol/j |
| PPFD | 998 µmol/m²/s |
| Spectrum | 660nm, 730nm, 3000K, 5000K |
| Wattage | 100 W |
| Voltage | 100-277V AC |
| Frequency | 50/60 Hz |
| Amps | 0.94 A @ 120V |
| Controller | Digital Dimming Timer |
| Power Connector Type | US Plug (NEMA 1-15 Type-A) |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 0 to 60°C |
| Life Expectancy | 50,000 Hours |
| ETL Certification | Yes |
For more information, refer to the Product Manual PDF.
