Description

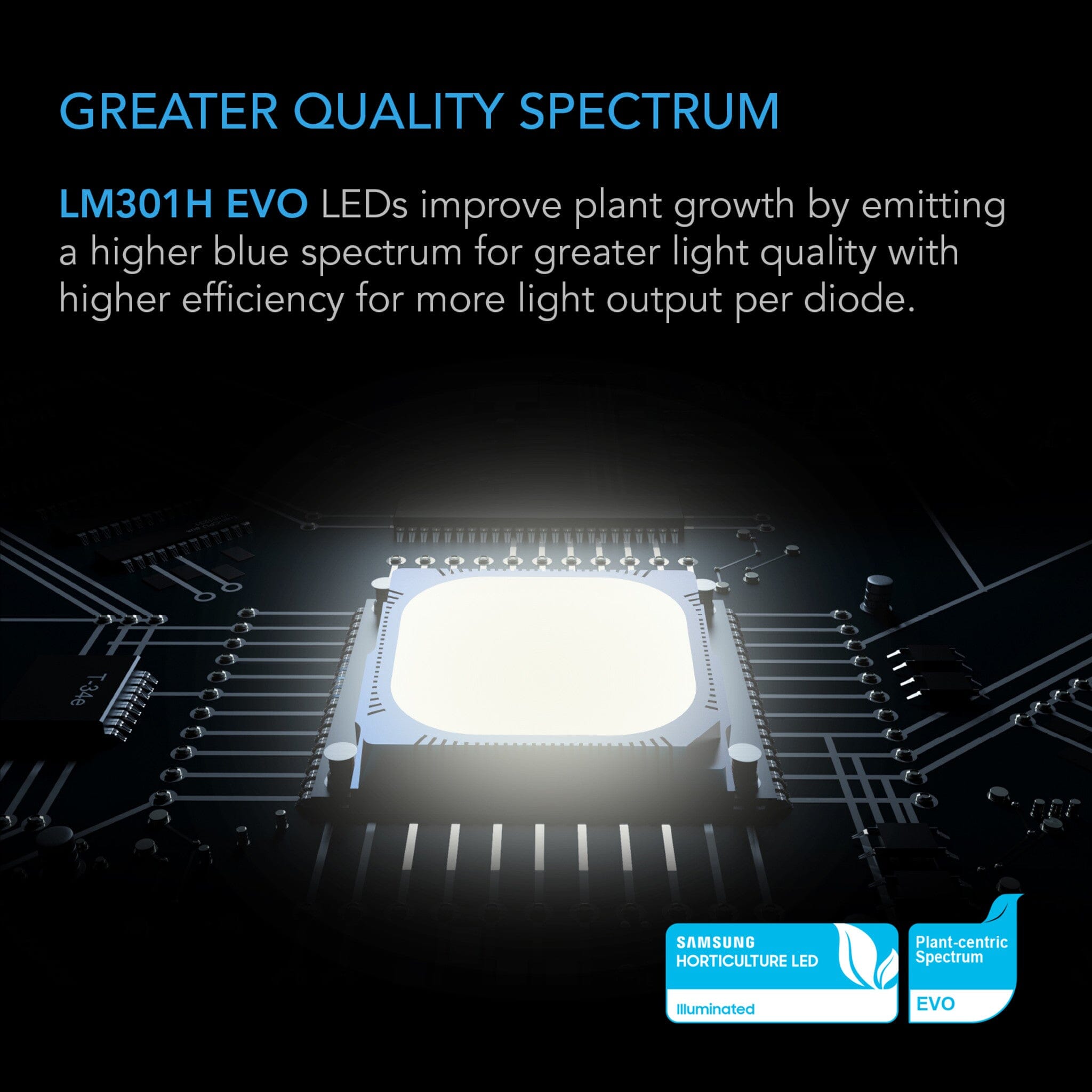

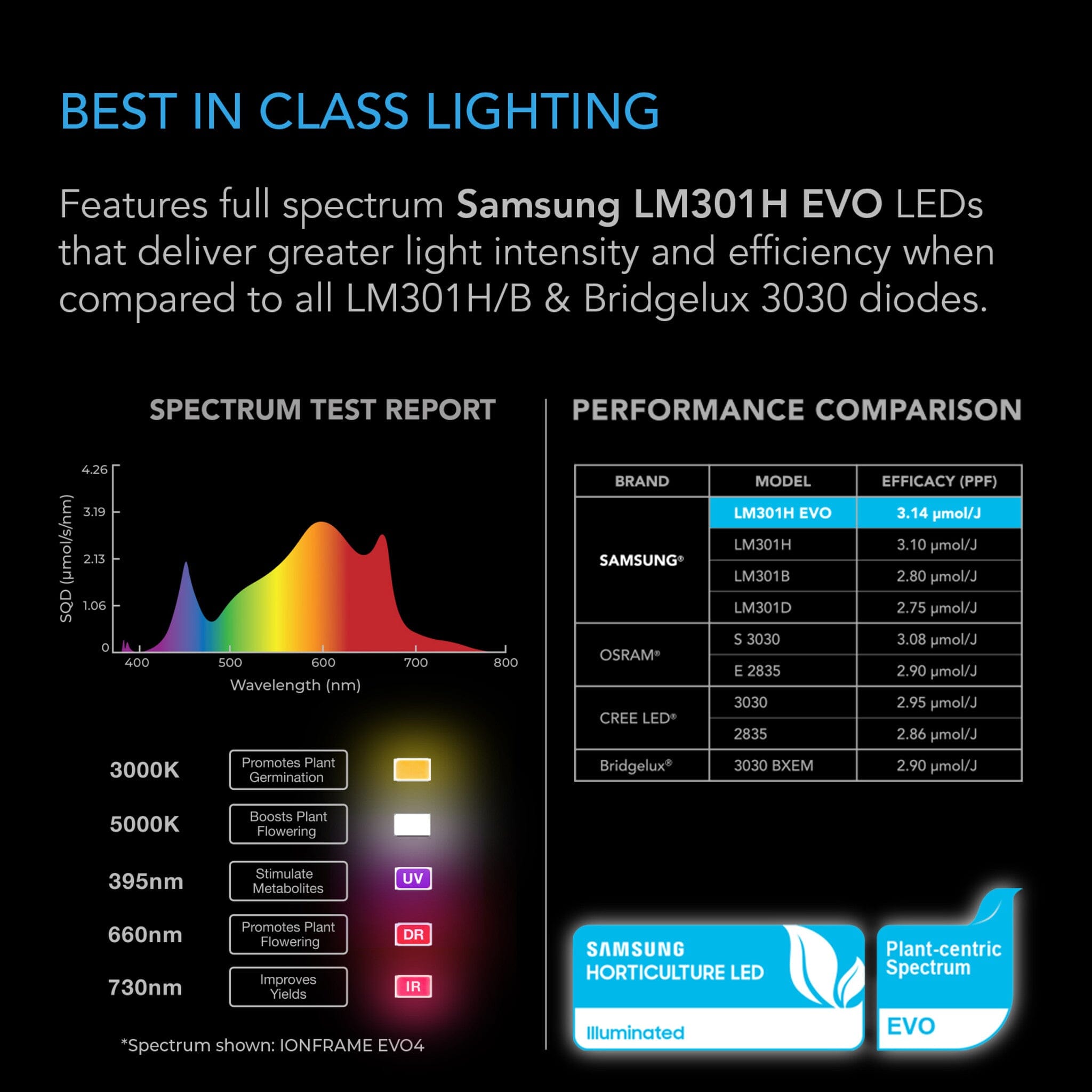

Improve your indoor plant growth and yields with our state-of-the-art IONFRAME EVO3 grow light. This advanced lighting solution is engineered to bring the sun's power indoors, equipped with premium Samsung LM301H EVO LEDs. Known for their unparalleled efficiency and brightness, these LEDs outperform traditional LM301B, LM301H, and Bridgelux 3030 chips, ensuring your plants receive the best light quality available.

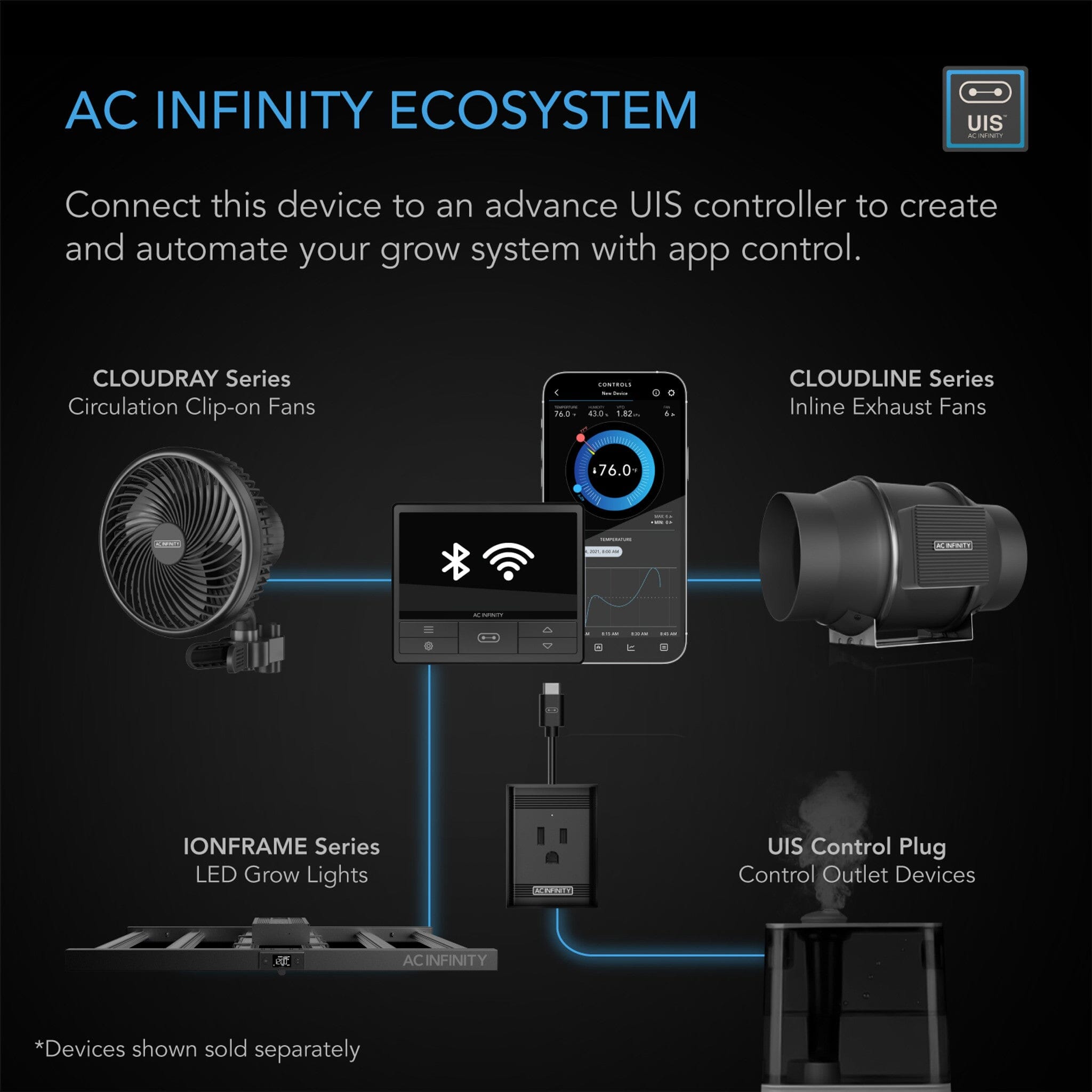

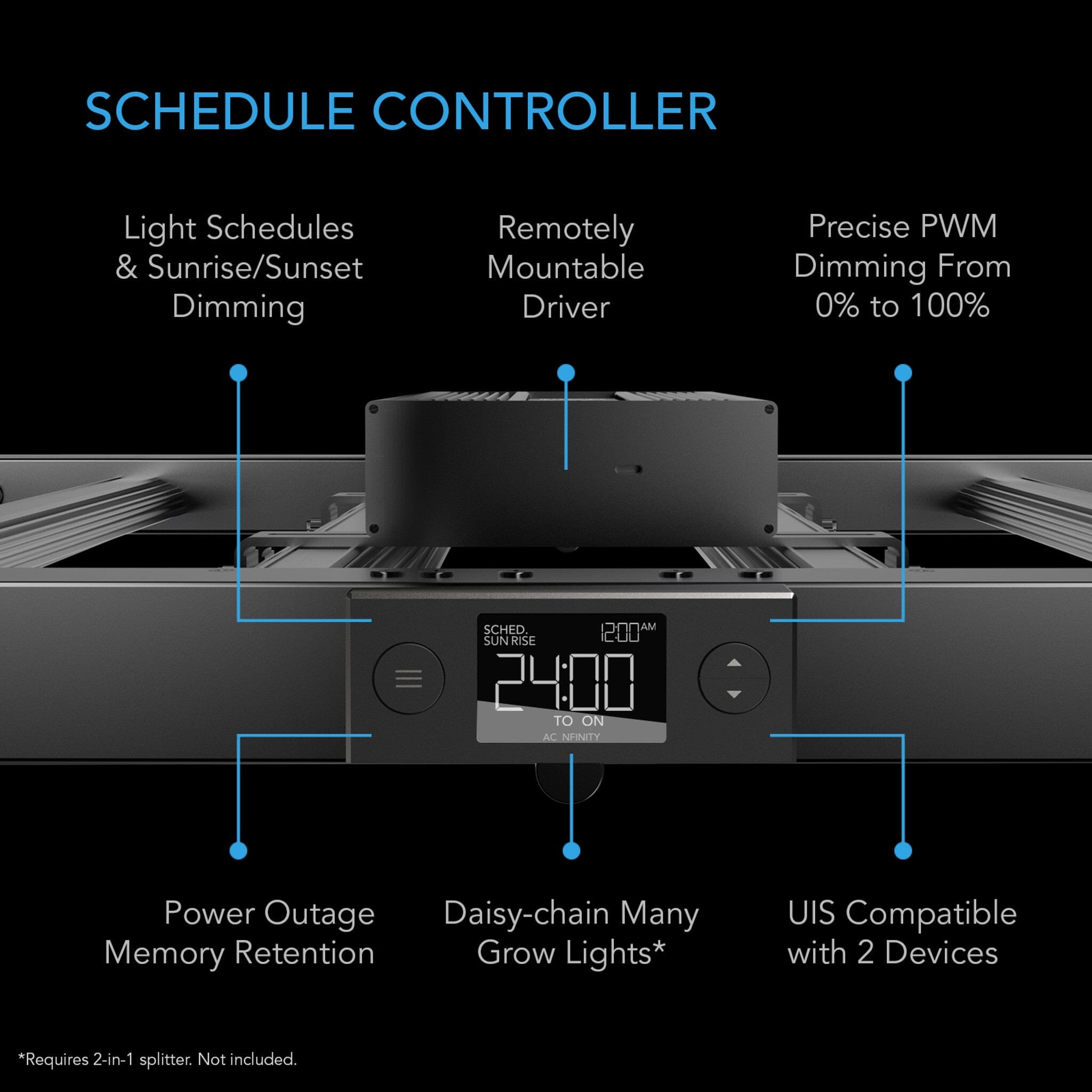

Experience ultimate control and flexibility with our intuitive schedule controls. The IONFRAME EVO3 allows for seamless adjustment of brightness across 10 levels, and features innovative sunrise/sunset dimming to mimic natural daylight cycles, fostering healthier plant growth. Integrated with our UIS™ platform, this grow light offers convenient WiFi app control, allowing you to manage your grow space from anywhere.

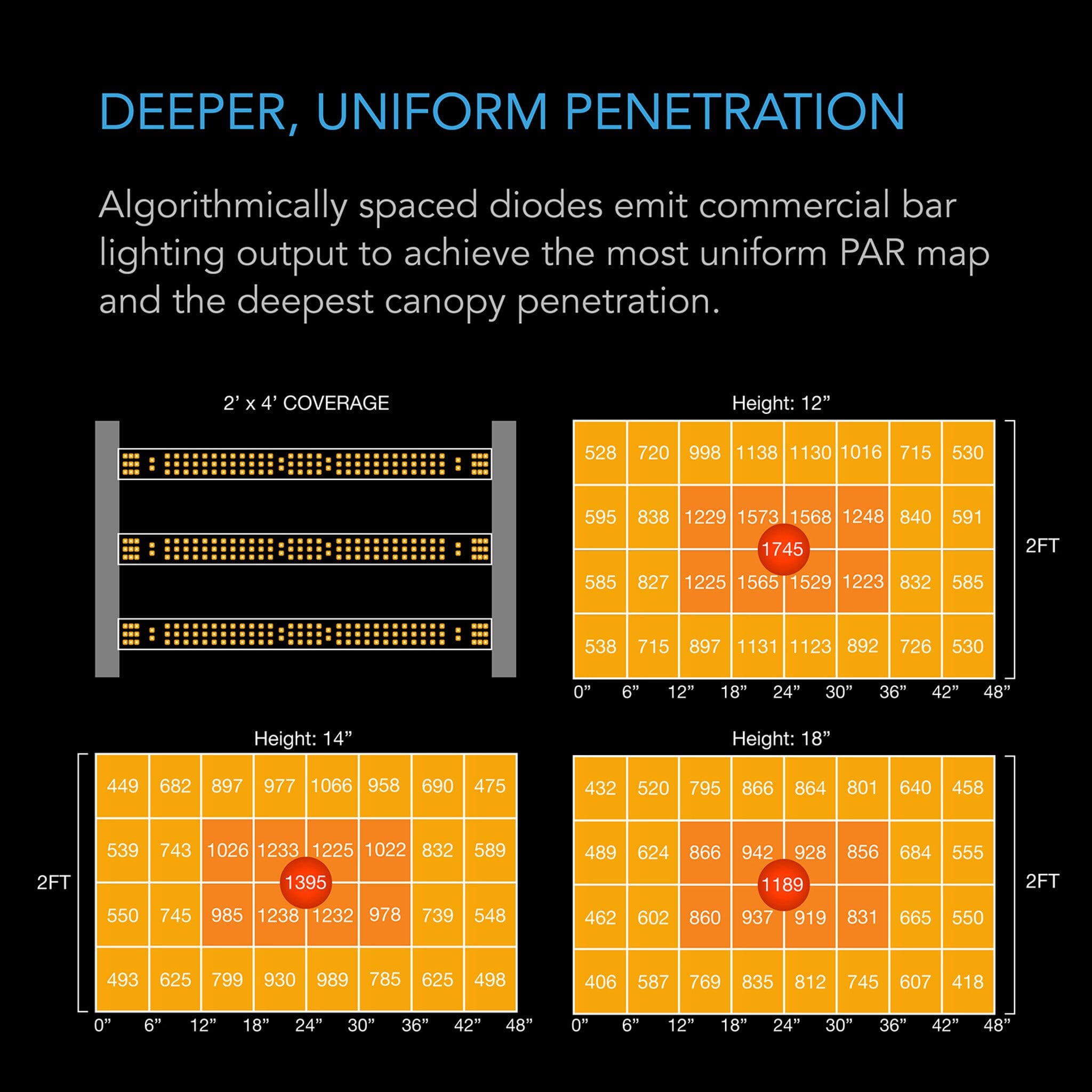

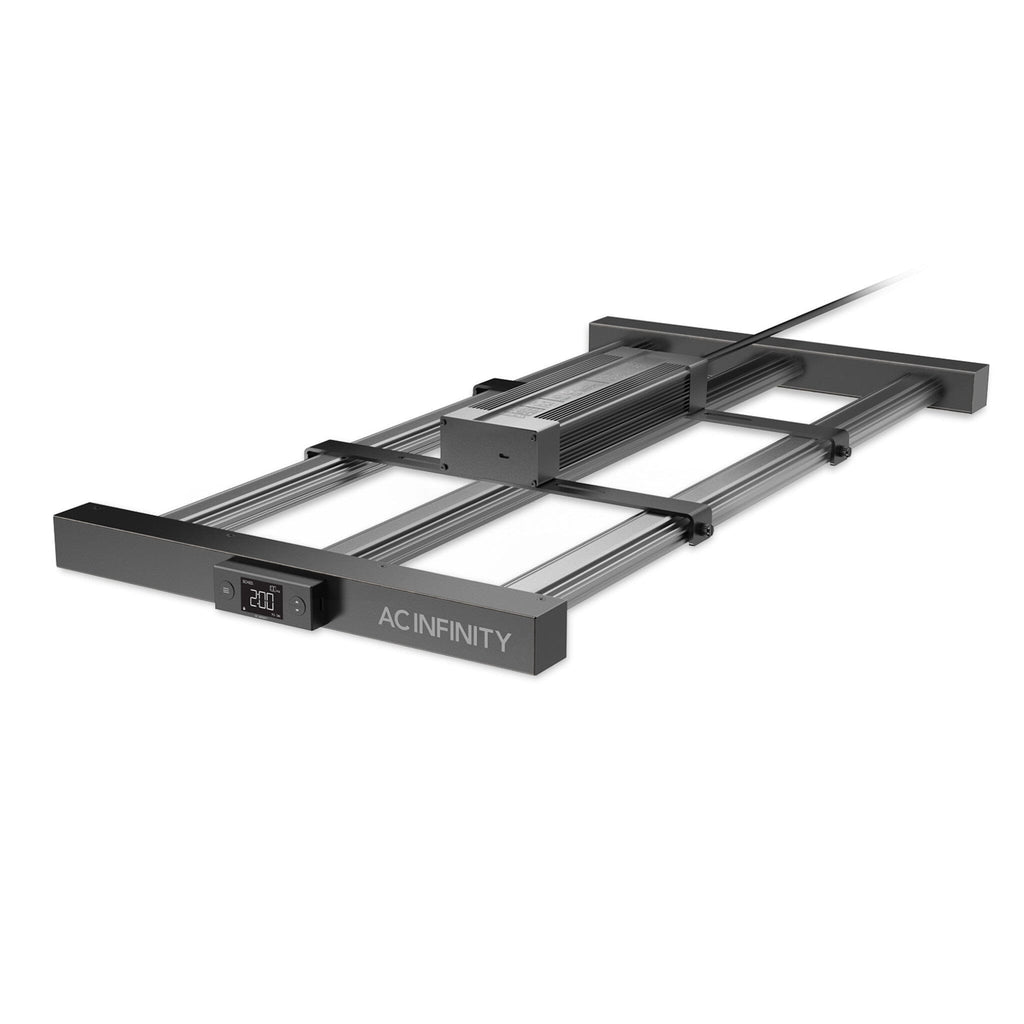

Designed with your garden's needs in mind, the IONFRAME EVO3 boasts a sleek bar-style design with strategically placed diodes. This ensures even light distribution, deep canopy penetration, and minimizes hotspots, creating the perfect environment for your plants to thrive. The passive cooling feature, coupled with a removable LED driver, enhances heat dissipation, and supports the daisy-chaining of up to 80 units for expansive grow operations.
With coverage areas of 90x150 cm for vegetation and 60x120 cm for flowering, this grow light is versatile for various grow spaces. It includes 840 efficient diodes, operates at 280W, and delivers a robust 1745 PPFD for optimal plant growth. Safety is paramount, and the IONFRAME EVO3 meets ETL standards (certificate #5021417), ensuring it's safe and reliable for your grow space.
Ready to use right out of the box, the IONFRAME EVO3 ships with an Australian power plug, making setup effortless. Its durable construction, featuring steel and aluminium, is designed for magnetic mounting and is IP-65-rated, ensuring it withstands humid conditions.
Choose the IONFRAME EVO3 for a superior indoor growing experience, combining cutting-edge technology with user-friendly features, all designed to maximize your plant's growth potential and yields.
| Product Identification IONFRAME EVO3 | |
| Manufacturer | AC Infinity Inc. |
| Product Name | IONFRAME EVO3 |
| Product Model | AC-IF3K |
| UPC Code | 819137024045 |
| Product and Mounting Dimensions | |

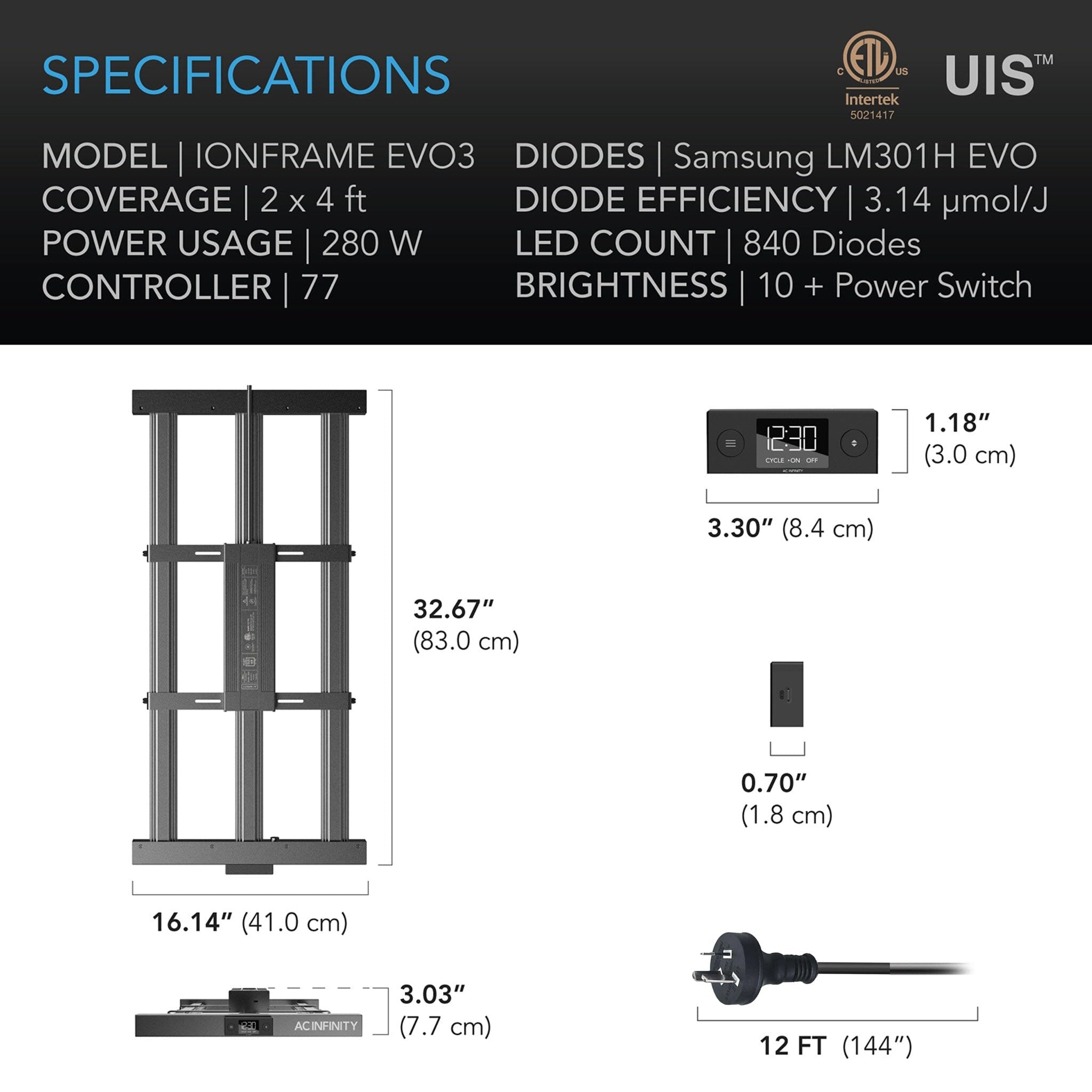

| Light Dimensions | 16.14 x 32.67 x 3.03 in. (41.0 x 83.0 x 7.7 cm) |
| Driver Dimensions | 7.16 x 1.57 in. (18.2 x 4.0 cm) |
| Product Performance and Technical Specs | |
| Coverage | 60x 120 CM / 2 x 4 ft. |
| Diodes | Samsung LM301H EVO |
| Spectrum | 395nm, 660nm, 730nm, 3000K, 5000K |
| Chip Count (Total) | 840 |
| Chip Count (EVO 3000K) | 537 |
| Chip Count (EVO 5000K) | 270 |
| Chip Count (Seoul 395 nm) | 3 |
| Chip Count (OSRAM 660 nm) | 27 |
| Chip Count (OSRAM 730 nm) | 3 |
| LED Driver | SOSEN-320W |
| Efficiency (Single Diode) | 3.14 µmol/J |
| PPFD | 1745 PPFD |
| Wattage | 280 W |
| Voltage | 100-277V AC |
| Frequency | 50/60 Hz |
| Amps | 2.8 A Max. |
| Controller | Schedule Controller |
| Power Connector Type | Australian power plug |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Waterproof Rating | IP-65 |
| Life Expectancy | 50,000 Hours |
